Updated October 2026. This guide is for removing and refitting bodywork on the CFMOTO 450SR, sold in the US as the 450SS. Removing motorcycle fairings is less about force and more about sequence. Most broken clips and cracked paint happen when a panel is still held by one hidden fastener, or when neighboring plastics are fighting each other.
It is a principle-level workflow: tools, panel zones, removal order, fastener sorting, and reinstall traps. It is not a bolt-by-bolt service manual. Use the official service literature for your model year for torque values, connector locations, and any step that affects safety systems.
What tools do you need to remove CFMOTO 450SR fairings?
To remove CFMOTO 450SR fairings without damage, you need control more than a full workshop. That means bits that seat fully in your fastener heads, plastic trim tools instead of metal screwdrivers, tape and a marker for labels, bags or a tray sorted by panel zone, something soft to rest panels on, and good light.
- Bits that seat fully in the heads on your bike — check what your fasteners actually are before you start
- Plastic pry tools or trim tools (avoid metal screwdrivers against painted edges)
- Painter’s tape and a marker for labeling
- Small zip bags or a magnetic tray divided by panel zone
- Soft blankets or foam to set panels paint-side up
- Phone camera for “as removed” reference shots
Work in good light. Rushing in a driveway at dusk is how clips disappear into gravel. Support the motorcycle securely before any panel comes off, and disconnect the battery if your procedure calls for it.
In what order should CFMOTO 450SR body panels come off?
On the CFMOTO 450SR, treat the bodywork as zones that share fasteners: front upper, side panels, lower and chin area, tank-adjacent covers, and the seat cowl or rear. Remove visible fasteners first, release overlapping edges before pulling any panel, support each panel as the last clip lets go, and stop whenever a panel fights back.
Before tools touch the bike, walk around and name the panels you will remove. Decide whether you need a full strip or only the damaged zone. Partial removals are fine — they still need the correct release order.
| Step | What to do | Stop and re-check if |
|---|---|---|
| Protect | Tape sharp neighboring edges that a panel must slide past | Paint is rubbing paint as the panel moves |
| Visible fasteners | Remove what you can see without prying | A fastener head starts to round — change the bit |
| Release overlaps | Free shared edges between side and front panels before pulling either | The panel bends instead of sliding |
| Support | Hold the plastic so the last clip does not take the full weight | The panel is hanging from a wire or connector |
| Stop if it fights | Look again for a hidden screw, push-pin, or wiring tether | You are reaching for more force |
Lighting and wiring tethers deserve extra patience. Do not let a panel hang from a connector. If you must pause mid-job, bag exposed connectors and cover the open area with a clean cloth so dust stays out.
How do you keep CFMOTO 450SR fasteners sorted for reinstall?
Keep CFMOTO 450SR fasteners sorted by bagging them by zone as they come out — front left, side right, chin, cowl — and photographing each bag beside its panel. Note any washer or special-length screw. Mixed lengths are a classic reinstall error, and thread engagement depth is not a place to improvise on any bike.
If two fasteners look identical but one is slightly longer, keep them paired with their holes. Label left and right explicitly — “side panel” is not enough when holes or cutouts differ subtly. A single letter (L/R) on painter’s tape on the back of each panel saves confusion after lunch.
Hardware matters. Some replacement panels ship with new clips; others expect you to reuse serviceable OEM fasteners. Note what you discard during removal so you are not short a screw on reinstall night. Plastic clips fatigue with heat cycles and prior removals. If a clip feels brittle, replace it while the panel is off rather than forcing it on reinstall.
What changes when the windshield or winglets come off a CFMOTO 450SR?

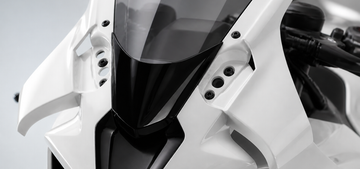

On the CFMOTO 450SR, the front windshield and winglets often come off during a broader strip-down because they sit on or beside the front and side bodywork. Note how grommets, trim rings, and mirror hardware route before you disconnect anything, and check how a replacement part mounts while the old hardware is still on the bench.
Aftermarket parts may use different hardware than OEM. For this bike, ISLEPARTS lists the V3 Front Windshield (a color-matched front assembly with a tinted acrylic screen), the Racing Modified Windshield, and the V4 Winglet — each for the CF 450SR / US 450SS only. If you swap parts during reassembly, dry-fit shared mounts before tightening any single panel.
Paint and trim finishes vary with batch and lighting. Matte, gloss, and satin pieces from different orders may not match perfectly in sun. If color continuity matters, plan a coordinated set from one order.
CFMOTO 450SR V3 Front Windshield
Color-matched front assembly for the CF 450SR / US 450SS: five body colors with a Light Gray, Dark Gray, or Black acrylic screen.
From $239.00
CFMOTO 450SR Racing Modified Windshield
Racing windshield for the CF 450SR / US 450SS in impact-resistant, UV-protected acrylic. Light Gray, Dark Gray, or Black.
From $129.00
Winglets for the CF 450SR / US 450SS, set at the side-panel edge. Starlight Black, Matte Black, Starlight White, or Silver.
From $239.00
How do you refit CFMOTO 450SR fairings without cracking clips?
Refit CFMOTO 450SR fairings by starting every fastener loosely, aligning the panel gaps, then tightening evenly in a cross pattern. Plastics compress, so stop when the panel seats without creaking. If your service literature lists a torque value, use it; otherwise snug by hand with the correct bit and recheck after the first short ride.
- Gap lines: start all fasteners loosely, align panel gaps, then tighten in a cross pattern.
- Snug vs stripped: over-tightening cracks plastic bosses; under-tightening buzzes at speed. Stripped inserts are a common self-inflicted wound.
- Wiring and lamp clearance: confirm connectors are fully seated and cables are not pinched.
- Shared mounts: if you are also fitting a new windshield or winglet, let shared edges settle together before the final tighten.
Seasonal projects stretch across weeks. Store removed panels flat, out of the sun, with labels on the back. Warped plastics from leaning against a wall in heat make reinstall harder than the removal ever was.
CFMOTO 450SR fairing removal FAQ
Do I need the service manual to remove CFMOTO 450SR fairings?
For torque values, connector locations, and anything that touches safety systems, yes. This guide is a method, not a bolt-by-bolt manual. When it conflicts with the official literature for your year, follow the literature.
Why do fairing clips break during removal?
Usually a hidden fastener is still holding the panel, or two overlapping panels are fighting each other. Stop, look for the last screw, push-pin, or wiring tether, and release overlaps before pulling.
Should I use a torque wrench on fairing screws?
Use one wherever your service literature gives a value. Otherwise snug evenly with the correct bit and stop as the panel seats. Many fairing fasteners go into plastic bosses that strip easily.
Will this removal order work on a CF 675SR-R or ZX-500RR?
The method carries over, but panel layouts and fasteners differ. This guide and the parts linked here are for the CF 450SR / US 450SS only.
Can I return a panel after fitting it?
Uninstalled items may be returned; installed, painted, or modified parts cannot. Compare the hole pattern against your removed panel on the bench before you mount anything, and read the return and refund policy first.
How do I check fitment before ordering replacement panels?
Photograph the headlight area, mirror mounts, tank seam, and any damaged clip bosses, then send them with your model, year, and market version (450SR or US 450SS) through the contact page. Forum replies that skip year and market are anecdotes, not fitment data.
Browse CF 450SR / 450SS parts and confirm fitment for your year and market version before checkout.
Safety note: Support the motorcycle securely. When your official service literature conflicts with a general guide, follow the literature for your VIN and model year.
